Specification:

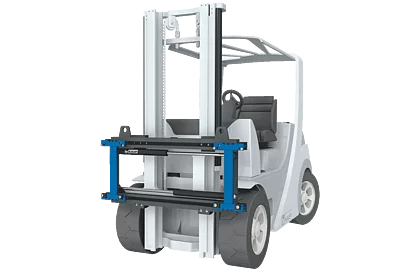

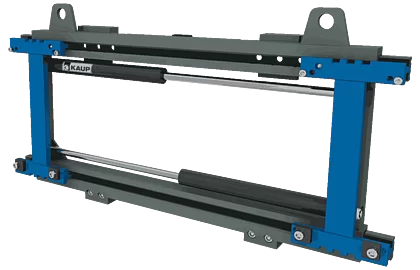

The KAUP Fork Positioner T160 offers an excellent view to the fork tips and the load as well as a favourable lost load centre. Therefore the achievable residual capacity is very good. The qualities of this attachment are particularly effective when different sizes of loads are regularly transported or different kinds of transportation are used - for example in logistics.

Product pictures and videos

Product details

Qualities:

For moderately heavy operation
Excellent residual capacity
High stability with optimal tare weight
Very good visibility conditions
Valve block sideshift serially
Use of longer forks possible
Original forklift trucks useable
Construction width of the attachment and opening range is not dependent on the width of the forklift truck carriage
More opening ranges with same construction width compared to shaft guided Fork Positioners

1) 4,8T with capacity (kg/mm) 2.700/1.200 available upon request.
Not suitable for clamping between the forks.
Available without sideshift.
Load backrest see model T479 and T479.1
Forks see model T180.
Optional in explosion proof version

Attachment has valveblock sideshift serially (integrated sideshift). Its design means that sideshift stroke is not available when the forks or arms are completely opened and/or completely closed.

Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.

Attachment supplied serially without forks. All forks in accordance with ISO 2330 can be used. Matching forks model T180 are available.

Attachment can be fitted with load backrest model T479. The load backrest model T479.1 is suitable for fork positioners T160B and T466B up to 4.8T.

Attachment is available for operation in explosion hazardous areas.

Attachment is specially designed for the function fork positioning and is not suitable for clamping between the forks.

Technical data

with valveblock sideshift dependent on the opening range - without forks - for forks acc. to ISO 2330
