Specification:

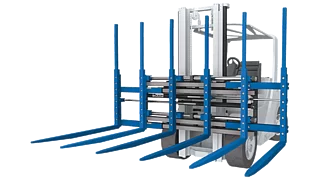

The simple construction of KAUP Triple Pallet Handler T429B-1-2-3 with innovated visibility improved design ensures a clear view through and over the attachment to the fork tips and load. The practice orientated construction from T-profiles and C-profiles ensures highest stability and long operating hours with extended intervals between servicing and a minimum of required maintenance even in heavy duty operation. The excellent residual capacity compared to similar models increases the productivity of this Multi Pallet Handler even more.

Product pictures and videos

Product details

Qualities:

Triple Pallet Handlers for heavy duty tasks
Very good visibility conditions
Excellent residual capacity - best lost load centre in this class
Synchronized for quicker working speeds
Independent sideshift serially
Screw-on forks serially
Optional: independent control of seperate fork pairs - adjustment of opening range to suit different types of pallets

1) Solenoid valve for individual control of pallets left and right. (add-on-price)
Fork length optional 1200 mm, 1150 mm or 1000 mm.
Locating claw on fork tip available upon request. Wider fork shanks available upon request.

Mehrfach-Palettenhandling: For double deep loading and unloading of 1 or 2 pallets or e.g. of 1, 2 or 3 pallets.

Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).

Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.

Please note the additional information below the data table.

Technical data

with independent sideshift - with bolt-on forks
