Specification:

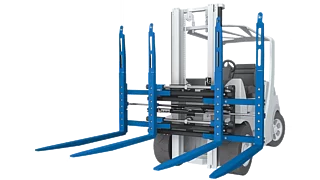

The newly designed Double Pallet Handler range T429C set new standards for Multi Pallet Handlers in lost load centre, residual capacity and visibility through and over the attachments to the fork tips and load. The practice orientated solid construction from T-profiles and C-profiles ensures highest stability and long operating hours with extended intervals between servicing and a minimum of required maintenance. At the same time the new Double Pallet Handler consumes 20% less energy.

Product pictures and videos

Product details

Qualities:

Double Pallet Handler for heavy duty tasks
Excellent visibility conditions
Good residual capacity
Screw-on forks serially
Synchronized for quicker working speeds
Independent sideshift serially
Optional: single control of seperate fork pairs - adjustment of opening range to suit different types of pallets

Measurement „C” = alternatively 560 / 650 / 700 mm mechanically or hydraulically adjustable (solenoid valve required).
Measurement „H” = standard height 1.400 mm, other lengths and forms upon request.
Double solenoid valve for additional individual adjustment for each pair of forks available upon request. (add-on price)
1) Optional with fork thickness 40 mm. (add-on price)
2) Fork length optional 1.000 mm, 1.150 mm or 1.200 mm. (no add-on price)
3) for handling of europallets crosswise we recommend the 1.400 mm wide body version
4) Standard with wider fork shanks.
Locating claw on fork tip available upon request.
Double Pallet Handler with Load Stabilizer available upon request.

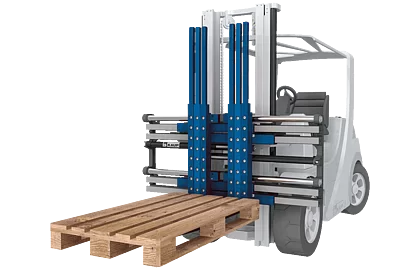

Multi Pallet Handling: 1 or 2 palletts next to each other.

Attachment is operated hydraulically, i.e. supplied with oil from the forklift truck’s hydraulic system. Truck requires two additional hydraulic functions.

Attachment has separate sideshift as standard. The maximum allowable sideshift stroke (e.g. ± 100 mm) is always available independent of fork or arm position (with clamps or fork positioners).

Attachment is available for operation in explosion hazardous areas.

Please note the additional information below the data table.

Technical data

with separate sideshift - with screw-on forks - for 1 or 2 pallets side by side
